References

Project

Year

Client

Total Length (m)

Max. Height (m)

Area (m2)

Ballyhack FDS

2016

M&B Construction - WCC

44

3.2

 58

Northwich FRMS

2015/16

GBV - EA

35

2

61

Stocksbridge Development

2014

Henry Boot

41

1.2

49

Waterford City FAS

2013/14

Niall Barry & Co

41

1.1

45

Limerick

 2013

L&M Keating

365

 0.3

110

Helix Project

 2013

Balfour Beatty

31

1.8

 31

Port of Grimsby

2013

Graham Construction

 10.6

 2.55

 27

Cummins Turbo Technologies

2013/14

Cummins Turbo Technologies

 298

 2.5

 250

Scrabster Harbour

 2012

RJ McLeod

 23

1.2

19

Clonmel Buolic Stream

2011

BAM Contractors

 30

 0.6

 18

Thames Upstream Gates

2011

Morrison Construction (now Galliford Try)

16

1.3

16

Fermoy, Ireland

 2010

Carillion / Lagan

580

4

 1275

Bewdley

 2002

Environment Agency

680

2.85

1150

Shrewsbury

 2002

Dean & Dyball

180

3.3

 350

Project

Year

Client

Total Length

Max. Height

Area

Norderney Ferry Terminal

Ongoing

 Reederei Norden Frisia

77m

1.20m

92m²

OCOR Derby

Ongoing

GBV - EA

350m

0.9m

280m²

Bad Gögging BA 4

2017

WWA Deggendorf

6m

0.60m

3.6m²

The Wrangling FRMS

2016

VBA - EA

19m

0.80m

15.2m2

Heidenau Müglitzmündung

2016

LTV oberes Elbtal

18m

0.90m

16m²

Sonthofen Ostrach BA 1b

2015

WWA Kempten

46m

0.80m

36m²

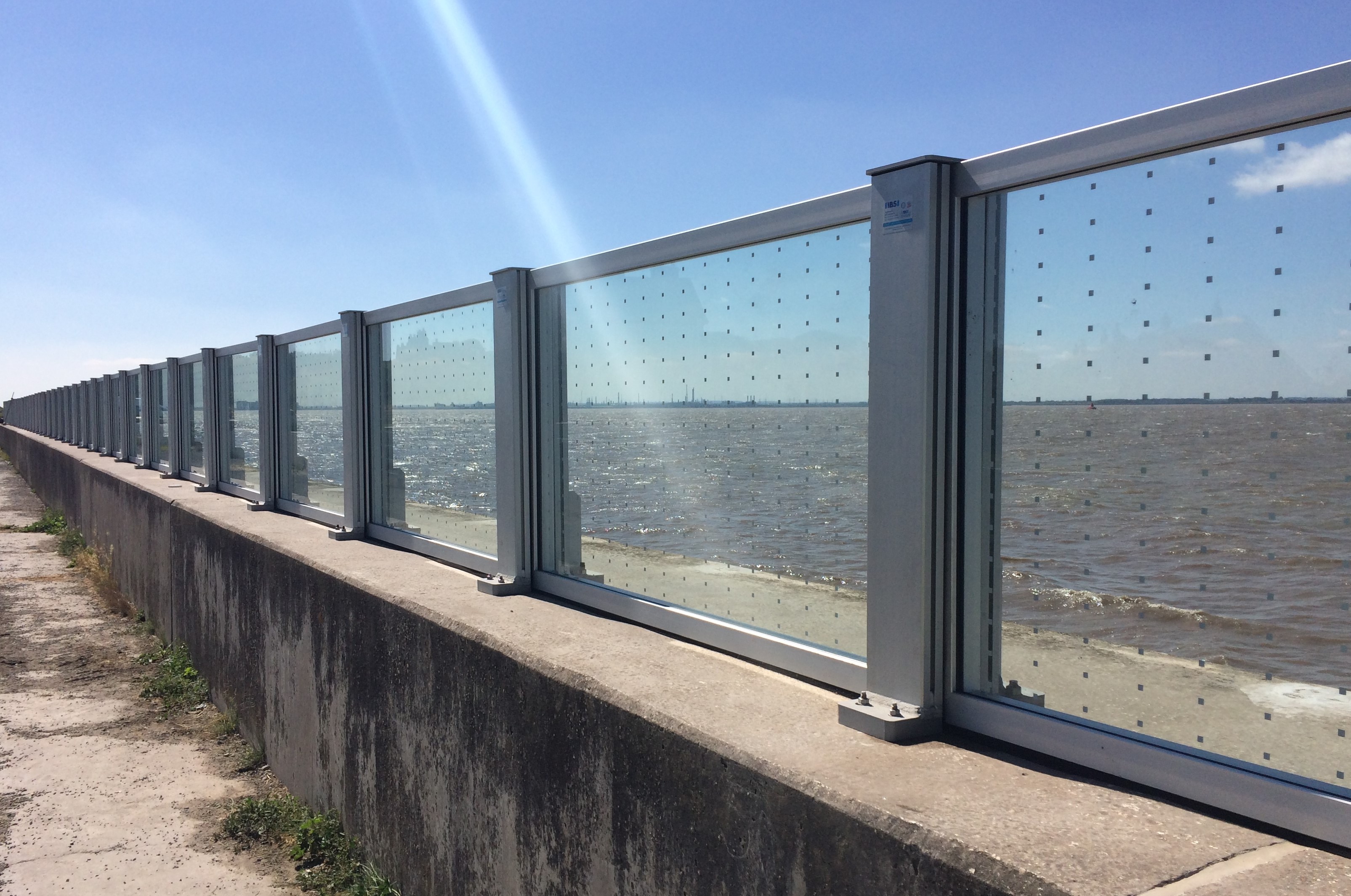

Paull Tidal Wall

2016

CR Reynolds - ERoYC

520m

1.10m

572m²

Northwich FRMS

2016

GBV - EA

300m+

1.40m

350m²

Leeds FAS

2016

BMMJV – EA/LCC

103m

1.26m

90.6m²

Littlehampton

2015

Volker Stevin - EA

82m

0.80m

65.6m²

Penclawdd FAS

2014/15

GBV - EA

35.5

0.70m

20m2

Bad Neustadt, Germany

2014

Wasserwirtschaftsamt

340m

0.60m

204m²

Ditzum, Germany

2013

Fa. Tiesler

85m

0.80m

47m²

Chemnitz, Germany

2012

Fa. Onnen-Krieger

67m

0.50m

33.4m²

Cockermouth Town FAS

2012

Volker Stevin - EA

27m

0.53m

14m2

Cockermouth Town FAS

2012

Volker Stevin - EA

20m

0.45m

9m2

Water of Leith FPS

2012

Lagan Construction

66m

0.3m

19.8m2

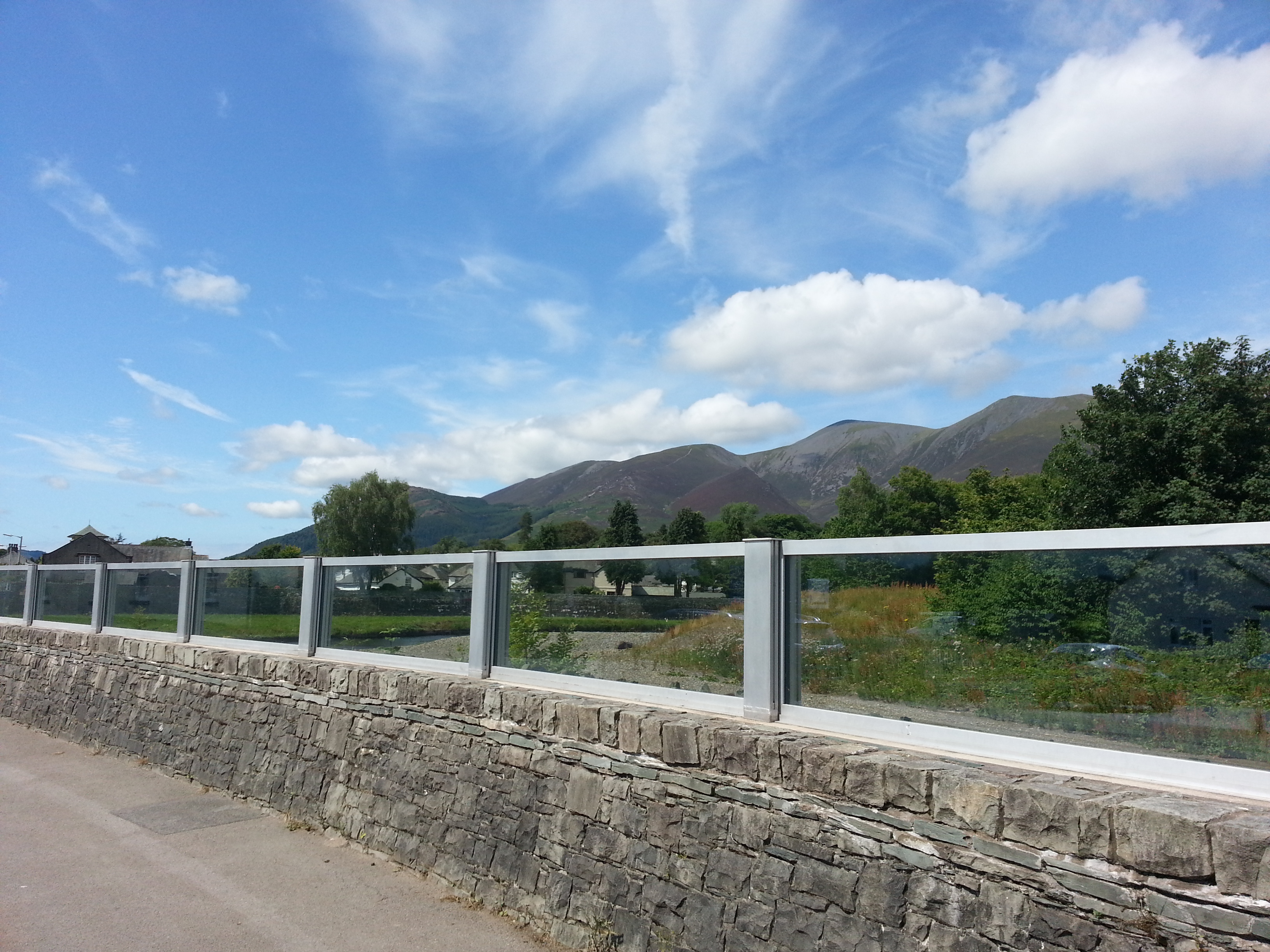

Keswick FRMS

2011

Volker Stevin – EA

117.5m

0.8m

94m2

Upton-upon-Severn FRMS

2011

Morrison Construction – EA

173m

0.49m

85m2

Thames Tidal Project

2011

Morrison Construction - EA

8.7m

0.64m & 0.89m

6.1m2

Penig B, Germany

2011

Swietelsky

210m

0.70m

147m2

Clonmel, Ireland

2010

OPW

46.4m

0.4m

18.5m2

Timmendorfer Beach, Germany

2010

Timmendorfer Beach

126m

1m & 0.6m

88m²

Plauen, Germany

2010

Fa. Scharnagl

200m

1m

200m²

Decín, Czech Republic

2010

AZ Sanace

160m

2.10m

336m²

Cologne, Germany

2007

Dywidag Systems International

310m

0.40m

124m²

Dassow, Germany

2000

State Agency for Agriculture and the Environment (Public Sector)

60m

0.80m

48m²

Rees, Germany

2000

Bauer GmbH

60m

0.65m

39m²

Project

Year

Client

Location

Length

max. Height

Area

St. Paul, USA

2010

Wellington Management Inc.

USA, MN, St. Paul

180m

1.3m

235m²

Lewes, UK

2009

Environment Agency

UK, Lewes, Sussex

110m

1.3m

143m²

Bregenz, Austria

2008

Hypo Immobilien GmbH

A, Bregenz

105m

0.75m

80m²

Coubon, F

2008

SICALA Haute-Loire

F, Coubon

105m

1.30m

136,5m²

Romsey, UK

2008

Environment Agency

UK, Romsey

160m

1.30m

208m²

Natahlia, AU

2007

Moira Shire Council

AU, Natahlia

500m

1.30m

650m²

HWS Regensburg

2006

Stadt Regensburg

D, Regensburg

1300m

1.30m

1700m²

HWS Magdeburg

2006

Busse Bau GmbH

D, Magdeburg

130m

0.90m

115m²

Shrewsbury, UK

2005

Environment   Agency

UK, Sapphire East

220m

1.35m

300m²

HWS   Schwarzer Deich  Bad Kreuznach

2004

Struktur- und   Genehmigungsdirektion Nord

D, Koblenz

205m

0.55m

110m²

Project

Year

Client

Quantity & Size

OCOR Derby

Ongoing

GBV - EA

6 no. Single/Double Leaf Floodgates including

  • 13,800mm x 2,000mm
  • 9,700mm x 950mm
  • 3,000mm x 1,900mm


Northwich FRMS

2016

GBV - EA

12 no. Single/Double Leaf Floodgates including

  • 7500mm x 800mm
  • 1800mm x 1400mm
  • 1500mm x 1850mm


The Wrangling FRMS

2016

VBA - EA

3 no. Single Leaf Floodgates

  • 3000mm x 1500mm
  • 3000mm x 1100mm
  • 1800mm x 1700mm


Hunstanton Promenade

2015

 KLWN Council

17 no. Single Leaf Floodgates, various sizes including –

  • 3050mm x 1500mm
  • 2400mm x 1150mm
  • 3050mm x 1300mm


Millbrook, Axminster

2015

Devon County Council

1 no. Single Leaf Steel Floodgate

  • 4000mm x 800mm


Canal Foot, Ulverston

2014

Floodsafe Projects

1 no. Single Leaf Floodgate

  • 3200mm x 1300mm


Sea Place, Worthing

2014

Kier Homes

3 no. Floodgates -

  • 1 no. 6800mm x 800mm Double
  • 2 no. 960mm x 800mm Single


Waterford City FAS, Ireland

2014

Niall Barry & Co

12 no. Single Leaf Floodgates, various sizes including

  • 3700mm x 1100mm
  • 3700mm x 800mm
  • 2780mm x 1100mm


Tanfield SS

2013

Freedom Group

10 no. Single Leaf Floodgates, various sizes including

  • 1180mm x 965mm
  • 1900mm x 915mm
  • 1200mm x 965mm



Thames Upstream Gates

2011

Morrison Construction (now Galliford Try)

13 no. Single and 4 no. Double Leaf Floodgates including

  • 3040mm x 1500mm Double
  • 3000mm x 800mm Double
  • 2900mm x 1900mm Double
  • 3000mm x 760mm Single
  • 900mm x 1600mm Single
  • 1170mm x 1170mm Single







Project

Year

Client

Sizing

Southend STW

2014

@One Alliance (Anglian Water)

1500mm x 1500mm

Dolbenmaen WTW

2014

Black & Veatch (Dwr Cymru)

 1000mm x 660mm (weir)

Dock Bridge

2013

Galliford Try (Environment Agency)

2500mm x 1800mm

Yeovil (Penmill) STW

2012

Trant Construction (Wessex Water)

Various up to

1600mm x 900mm

Dunkerton WTW

2012

Trant Construction (Wessex Water)

700mm x 700mm

Belle Greve WwTW

2012

Trant Construction (Guernsey Water)

Various up to

1000mm x 1300mm

Corby WTW

2012

@One Alliance (Anglian Water)

1500mm x 750mm

Kempsey FAS

2012

Morrison Construction (Environment Agency)

3000mm x 2000mm

Braintree STW

2012

M&C Engineering (Anglian Water)

900mm x 1600mm

Colchester WwTW

2011

@One Alliance (Anglian Water)

1100mm x 1100mm

1500mm x 825mm

Ings Beck FAS

2010

Morrison Construction (Environment Agency)

Various up to 900mm x 900mm

Whilton STW

2011

@One Alliance (Anglian Water)

500mm x 500mm

600mm x 600mm

Bough Beech WTW

2011

Black & Veatch (Sutton & East Surrey)

600mm x 600mm to 1000mm x 1000mm

Mogden STW

2011

Black & Veatch (Thames Water)

Various up to 2000mm x 3000mm

Project

Year

Client

Sizing

Sunnymeads Intake

2014

Interserve (Affinity Water)

2400mm x 3900mm

Ashford WwTW

2013

Barhale (Southern Water)

2500mm x 2300mm

The Helix Project

2013

Balfour Beatty (Falkirk Council)

Various sizes including

  • 6500mm x 5200mm
  • 7100mm x 1850mm
  • 5000mm x 2450mm


Chertsey Intake

2013

Interserve

(Affinity Water)

2000mm x 2600mm

Cam P.S.

2013

Waterbeach Levels IDB

4200mm x 4300mm

Holyfield Weir

2013

Environment Agency

2370mm x 2900mm

Grand Union Canal

2012

Canal & Rivers Trust

4770mm x 2100mm

Belle Greve WwTW

2012

Trant Construction (Guernsey Water)


  • 1000mm x 1500mm
  • 1000mm x 1780mm


Braybourne Close

2012

Environment Agency

2580mm x 1837mm

British Waterways

2010

British Waterways

4770mm x 1800mm

Ings Beck FAS

2010


  • Morrison Construction (Environment Agency)
  • 3400mm x 1300mm
  • 2200mm x 1300mm


Catteshall Weir

2010

Nomenca (Environment Agency)

3740mm x 2100mm

Tumbling Bay Weir

2012

Environment Agency

1800mm x 517mm

Mogden STW

2011

Black & Veatch (Thames Water)

Various sizes including

  • 3000mm x 3200mm
  • 2600mm x 5450mm


Ware Lock

2011

Environment Agency


  • 4900mm x 3000mm
  • 4900mm x 2040mm
